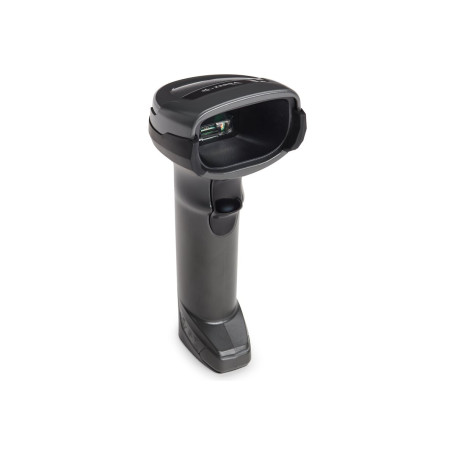

Zebra DS4678 barcode Scanner
| Product Description | Zebra DS4678 - barcode scanner |
| Type | Barcode scanner - handheld - Bluetooth 5.2, USB - decoded |
| Colour | Twilight black |
| Scan Element Type | 2D imager |
| Sensor Resolution | 1280 x 800 |
| Connectivity Technology | Wireless, wired |
| Battery | 1 x Lithium Ion |
| Dimensions (WxDxH) | 6.6 cm x 10.7 cm x 16.8 cm |
| Weight | 225 g |
| Manufacturer Warranty | 5-year warranty |
General
| Type | Barcode scanner - handheld |
| Colour | Twilight black |
Expansion / Connectivity
| Interfaces | 1 x USB - Type A |
Manufacturer Warranty
| Service & Support | Limited warranty - 5 years |
Miscellaneous
| Cables Included | USB cable - external |
| Compliant Standards | RoHS 2011/65/EU, EN 50581:2012, EN/IEC 63000:2018, IEC 60950-1 Second Edition, CAN/CSA C22.2 No. 60950-1-07, EN 60950-1:2006+A2:2013, IEC 60950-1:2005 + A2:2013, EN 62368-1:2014, EN 62471:2008, IEC 62368-1 Second Edition, IEC 62471:2006, FCC CFR47 Part 15 B Class B, ICES-003 issue 6 Class B, EN 55032 Class B, EN55024, EN 55035, EN 60601-1-2:2015, IEC 60601-1-2:2014, IP52, Bluetooth Class 1 |
Power
| Battery | 1 x Lithium Ion |
| Electric Current Required | 470 mA (typical), 150 mA (standby) |
Environmental Parameters
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Drop Specification | 1.8 m to concrete |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
Dimensions & Weight
| Width | 6.6 cm |
| Height | 16.8 cm |
| Depth | 10.7 cm |
| Weight | 225 g |
Barcode
| Scan Mode | Single-pass |
| Pitch (Degrees) | 60 |
| Skew (Degrees) | 60 |
| Sensor Resolution | 1280 x 800 |
| TTL Decoding | Decoded |
| OK Notification | Beeper, LED indicator |
| Connectivity Technology | Wireless, wired |
| Light Source Wave Length | 617 nm |
| Print Contrast Signal (PCS) | 15% |
| Scan Element Type | 2D imager |
| Decode Capability | Code 93, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, PDF417, MSI-Plessey, Data Matrix, TLC39, OCR-A, OCR-B, Micro QR code, DotCode, Composite, Han Xin, Korean 3 of 5, Base 32 |
| Interface Type | Bluetooth 5.2, USB |
| Features | Checkpoint Electronic Article Surveillance (EAS), standard range scanning |
